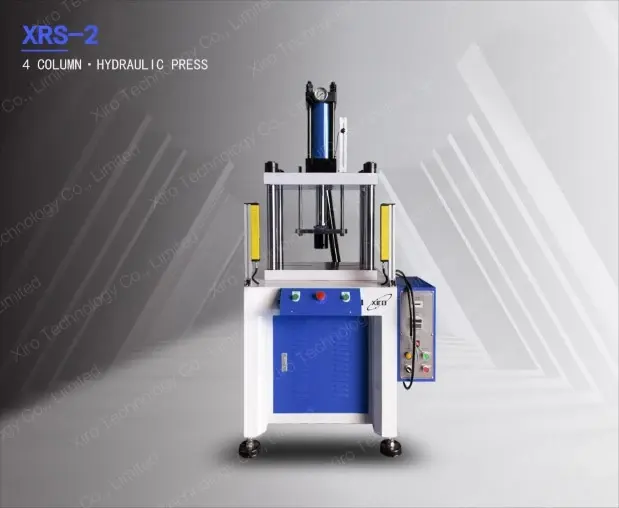

XRS-2
Features1. High performance:

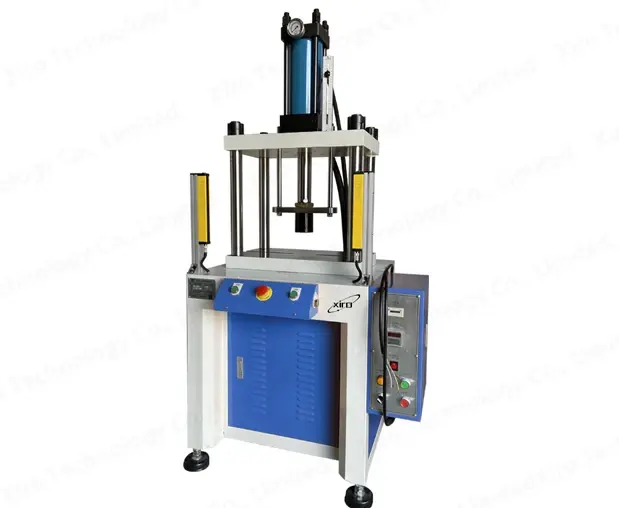

Four-Column Three-Plate Design: Ensures parallel movement and high precision.
Integrated Hydraulic Station: Simplified hydraulic circuit for easy maintenance.
Mobility: Equipped with wheels and foot cup holders for efficient movement.
2. Enhanced Efficiency:
High-Speed Cylinder: Faster approach and return speeds for high production efficiency.
Durable Components: Piston rod and columns made of high-tensile alloy steel, finely ground and chrome plated.
Adjustable Settings: Manual adjustment for pressing head or upper worktable, customizable pressure, stroke, and holding pressure.
3. Safety Features:
Automatic alarm, fault diagnosis systems, dual-hand operation, emergency stop, inching functions, and photoelectric protection device.

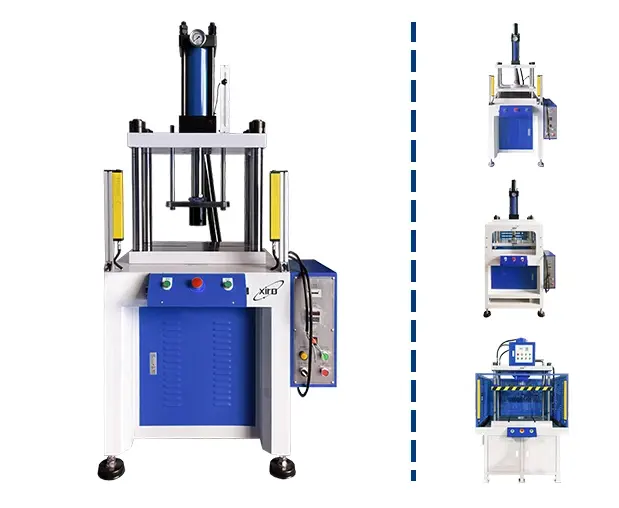

4. Optional Configurations:
Protective shield, anti-drop device, LED lighting, infrared grating, hydraulic-driven cushion pads, ejectors, knockouts, edge pressing devices, high-speed slides.
Why XIRO machinery ?
Direct Sales from the Source Manufacturer: With over 20 years of manufacturing experience, our machinery has been exported to more than 60 countries. We offer a comprehensive pre-sale and after-sale service system.
Service and Support: Professional engineering team offering 24/7 online technical service and response. With thousands of product cases, we assist you every step of the way, from process experience and technical solutions to installation, machine operation, and equipment maintenance, ensuring worry-free production for you!
Quality Assurance: We select globally renowned quality components to create durable and cost-effective machinery. All machines are ISO and CE certified, with a 2-year warranty and lifetime service. Longer warranty period than the same industry.
Click Contact Us submit your Information or send an email to sales@xirotech.cn
Bookmark our page. Learn more about the details of stamping hydraulic press. Quality Machinery, Limited-Time Discount, Act Now, Don't Miss Out!
SpecificationItem | Unit | Specifications | ||||||||||||
XRS-10TS | XRS-15TS | XRS-20TS | XRS-25TS | XRS-30TS | XRS-35TS | XRS-40TS | XRS-50TS | XRS-60TS | XRS-80TS | XRS-100TS | XRS-150TS | |||
Max. working pressure | Mpa | 13 | 19 | 21 | 20 | 19 | 23 | 19 | 21 | 20 | 21 | 20 | 21 | |
Main cylinder force | kN | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 800 | 1000 | 1500 | |
Max. stroke of ram | mm | 300 | 300 | 300 | 300 | 350 | 350 | 450 | 450 | 450 | 450 | 450 | 450 | |
Max. open height | mm | 400 | 450 | 450 | 500 | 550 | 550 | 600 | 700 | 700 | 700 | 700 | 700 | |
Middle blanking apertuer size | mm | 150*100 | 150*100 | 150*100 | 200*150 | 200*150 | 250*200 | 250*200 | 250*200 | 300*200 | 400*250 | 400*250 | 400*250 | |
Speed of ram | Down no load | mm/s | 260 | 260 | 230 | 220 | 200 | 220 | 210 | 205 | 190 | 190 | 190 | 190 |
Pressing | mm/s | 40 | 38 | 35 | 30 | 20 | 30 | 20 | 18 | 15 | 15 | 15 | 15 | |
Return | mm/s | 260 | 260 | 225 | 220 | 200 | 210 | 200 | 200 | 190 | 190 | 190 | 175 | |
Effective area of working table | RL(column inside) | mm | 450 | 500 | 500 | 550 | 550 | 650 | 700 | 800 | 900 | 1000 | 1000 | 1000 |
FB(edge) | mm | 450 | 500 | 500 | 550 | 550 | 550 | 600 | 650 | 750 | 800 | 800 | 800 | |
Overall dimension | L.R | mm | 900 | 900 | 900 | 980 | 980 | 980 | 1250 | 1340 | 1460 | 1580 | 1620 | 1680 |
F.B | mm | 850 | 850 | 850 | 900 | 900 | 900 | 1100 | 1150 | 1220 | 1320 | 1350 | 1370 | |
H | mm | 2105 | 2155 | 2155 | 2220 | 2270 | 2420 | 2550 | 2750 | 2800 | 2850 | 2950 | 3150 | |
Motor power | kW | 4 | 4 | 4 | 4 | 4 | 6 | 6 | 11.6 | 11.6 | 11.6 | 16.4 | 16.4 | |
Total weight | kg | 900 | 950 | 1020 | 1080 | 1120 | 1400 | 1650 | 2400 | 2900 | 3200 | 3400 | 3600 | |
Oil quantity(Approx) | L | 150 | 150 | 150 | 170 | 170 | 180 | 200 | 250 | 300 | 300 | 300 | 300 | |
