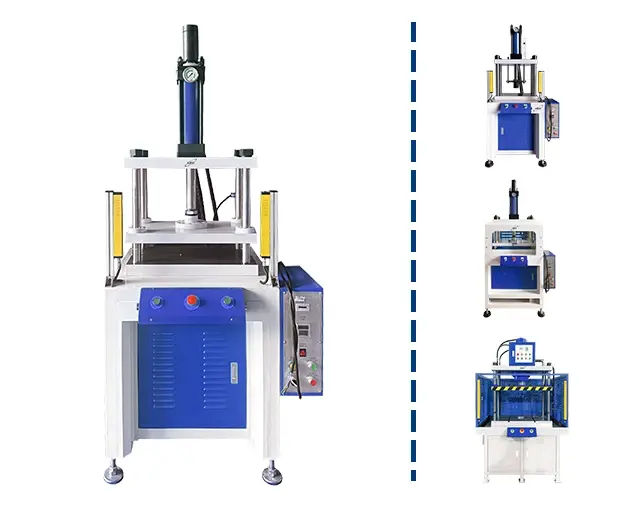

XRS-3

The machine's appearance, color, size, accessory brand, system, etc., can all be customized according to requirements.

Fitting/Straightening/Bending/Stamping/Riveting/Clamping Crimping/Inserting/Joining/Punching/Blanking/Riveting Spring Testing/Staking/Swaging/Assembly

Categories: Trimming Press

Features

Why XIRO machinery ?

Specification

Item		Unit	Specifications
Item		Unit	XRS-10TS	XRS-15TS	XRS-20TS	XRS-25TS	XRS-30TS	XRS-35TS	XRS-40TS	XRS-50TS	XRS-60TS	XRS-80TS	XRS-100TS	XRS-150TS
Max. working pressure		Mpa	13	19	21	20	19	23	19	21	20	21	20	21
Main cylinder force		kN	100	150	200	250	300	350	400	500	600	800	1000	1500
Max. stroke of ram		mm	300	300	300	300	350	350	450	450	450	450	450	450
Max. open height		mm	400	450	450	500	550	550	600	700	700	700	700	700
Middle blanking apertuer size		mm	150*100	150*100	150*100	200*150	200*150	250*200	250*200	250*200	300*200	400*250	400*250	400*250
Speed of ram	Down no load	mm/s	260	260	230	220	200	220	210	205	190	190	190	190
	Pressing	mm/s	40	38	35	30	20	30	20	18	15	15	15	15
	Return	mm/s	260	260	225	220	200	210	200	200	190	190	190	175
Effective area of working table	RL(column inside)	mm	450	500	500	550	550	650	700	800	900	1000	1000	1000
Effective area of working table	FB(edge)	mm	450	500	500	550	550	550	600	650	750	800	800	800
Overall dimension	L.R	mm	900	900	900	980	980	980	1250	1340	1460	1580	1620	1680
	F.B	mm	850	850	850	900	900	900	1100	1150	1220	1320	1350	1370
	H	mm	2105	2155	2155	2220	2270	2420	2550	2750	2800	2850	2950	3150
Motor power		kW	4	4	4	4	4	6	6	11.6	11.6	11.6	16.4	16.4
Total weight		kg	900	950	1020	1080	1120	1400	1650	2400	2900	3200	3400	3600
Oil quantity(Approx)		L	150	150	150	170	170	180	200	250	300	300	300	300
