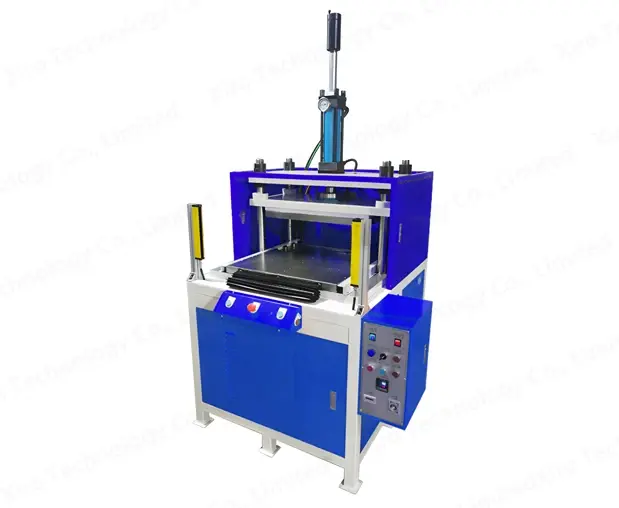

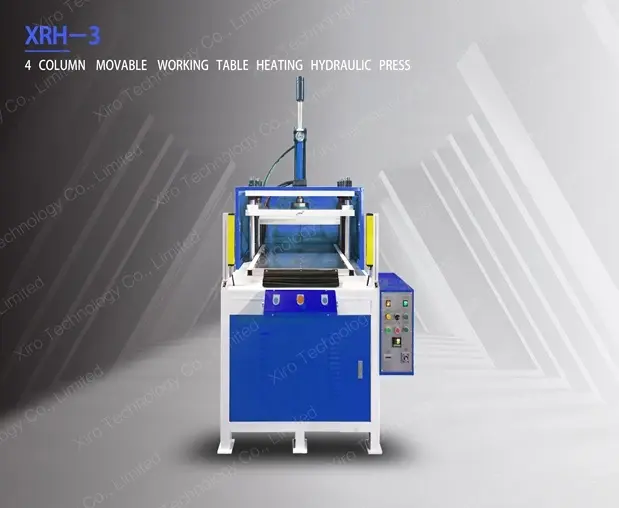

XRH-3
Features1. Precision & Efficiency:
Thermal Oil Heating: Heats up to 300℃ with an error margin of ±1℃.
Independent Control: Upper and lower heating plates controlled separately.
RKC Intelligent Controller: Precisely controls temperature, pressure, and curing process parameters.
2. Robust Construction:
Four-Column Three-Plate Design: Ensures high precision and rigidity.
Integrated Components: Includes prepreg device, heating system, pressure control system, and mold device.
Integrated Hydraulic Station: Simplified hydraulic circuit for easy maintenance.
Mobility: Equipped with wheels and foot cup holders.
3. Advanced Control System:
PLC Program: Allows for multi-stage pressure and stroke settings.
Real-Time Display: Monitors temperature, pressure, and displacement.
Safety Features: Automatic alarm, fault diagnosis systems, dual-handed control, emergency stop buttons, and inching functions.
4. Optional Configurations:
Customizable Options: Protective shield, anti-drop device, LED lighting, infrared grating, hydraulic-driven cushion pads, ejectors, knockouts, edge pressing devices, high-speed slides.
Why XIRO machinery ?
Direct Sales from the Source Manufacturer: With over 20 years of manufacturing experience, our machinery has been exported to more than 60 countries. We offer a comprehensive pre-sale and after-sale service system.
Service and Support: Professional engineering team offering 24/7 online technical service and response. With thousands of product cases, we assist you every step of the way, from process experience and technical solutions to installation, machine operation, and equipment maintenance, ensuring worry-free production for you!
Quality Assurance: We select globally renowned quality components to create durable and cost-effective machinery. All machines are ISO and CE certified, with a 2-year warranty and lifetime service. Longer warranty period than the same industry.
Click Contact Us submit your Information or send an email to sales@xirotech.cn
Bookmark our page. Learn more about the details of heating hydraulic press. Quality Machinery, Limited-Time Discount, Act Now, Don't Miss Out!
SpecificationItem | Unit | Specifications | ||||||
XRH-3-20T | XRH-80T | XRH-100T | XRH-150T | XRH-200T | XRH-300T | |||
Nominal force | kN | / | 800 | 1000 | 1500 | 2000 | 3000 | |
Max. working pressure | Mpa | 20-140 | 20 | 21 | 21 | 20 | 24 | |
Main cylinder force | kN | 0.9-20 | 800 | 1000 | 1500 | 2000 | 3000 | |
Max. stroke of ram | mm | 150-200 | 350 | 350 | 350 | 350 | 350 | |
Max. open height | mm | 200 | 450 | 450 | 550 | 600 | 650 | |
Heating time | s | 0-3 | 0-3 | 0-3 | 0-3 | 0-3 | 0-3 | |
Speed of ram | Down no load | mm/s | / | 180 | 180 | 180 | 180 | 170 |
Pressing | mm/s | / | 15 | 12 | 10 | 10 | 8 | |
Return | mm/s | / | 170 | 170 | 170 | 170 | 165 | |
Effective area of working table | RL(column inside) | mm | 350 | 550 | 550 | 550 | 550 | 550 |
FB(edge) | mm | 450 | 600 | 600 | 600 | 600 | 650 | |
Overall dimension | L.R | mm | / | 1550 | 1550 | 1760 | 1830 | 1420 |
F.B | mm | / | 1260 | 1260 | 1260 | 1360 | 1550 | |
H | mm | / | 2580 | 2580 | 2650 | 2750 | 2920 | |
Motor power | kW | 2.25-5.5 | 7.5 | 7.5 | 7.5 | 11 | 15 | |
Total weight | kg | 450-800 | 2600 | 2600 | 3200 | 3500 | 6200 | |
Oil quantity(Approx) | L | 50-90 | 300 | 360 | 360 | 400 | 450 | |
