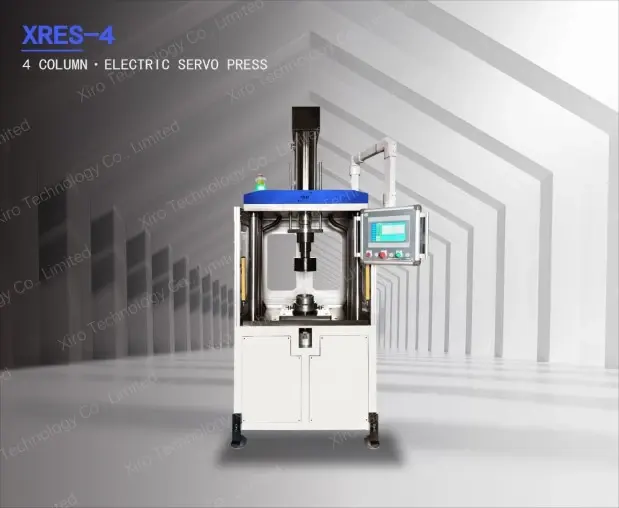

XRES-4 Electric Servo Press

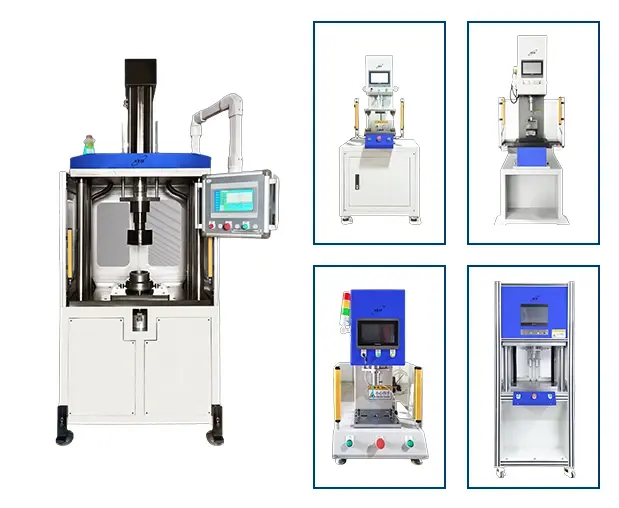

FeaturesXRES-4 Electric servo press adopts a double-column or multi-column frame structure, ensuring stability and resistance to deformation.
As a customizable model, it can be flexibly applied to various production lines according to specific manufacturing requirements.
The system consists of: Main Unit: The servo actuator's piston rod is connected to the movable crossbeam, which moves vertically along four guide columns to perform pressing actions. Control System: Provides reliable and flexible operation control.
1.Precision & Yield: Offers high precision and yield rates.
AC Servo Motors: Propels low-backlash ball screw and press punch for precise control over travel distance, pressure, and return position.
Electric Actuator: Replaces hydraulic systems for precise slide motion and max. pressing force at any stroke point.
Programmable Accuracy: Pressure accuracy within 0.5%FS. Displacement accuracy 0.01mm. Displacement repetition accuracy 0.01mm.
Real-time Monitoring: Flexible control modes with instant feedback for diagnostics and maintenance, reducing product damage.
High Tonnage Capacity: Models range from 1kg – 50T.
2.Energy Efficient: Energy on-demand, up to 80% energy savings compared to hydraulic presses.
3. Multi-functional: Highly cost-effective and versatile for various applications.
4.Easy Operation & Low Maintenance: Simplified without traditional parts (flywheel, pneumatic cylinder, press motor, clutch)，making maintenance easier and eliminating leak-related issues.
5.Longevity: Longer lifespan with roller screw actuators lasting up to 15 times longer.
6.Safety & Cleanliness: Electric operation, enhanced safety, no oil leaks, suitable for clean environments.
7.Low Noise: Operates with low ambient noise levels.
Why XIRO machinery ?

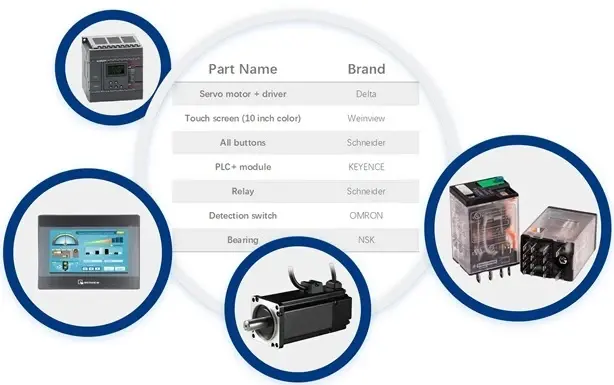

Excellent Technology: Using globally renowned brand components to create high precision and high-quality machinery, introducing advanced technology, comparing the presses of Germany, Japan, the United States, Switzerland, get the performance of premium brands, superior quality, unbeatable value – at just 20% of the price, it is a low acquisition cost choice for manufacturers.
Direct Sales from Manufacturer: Machine manufacturer with over 20 years of production experience. Our presses reach over 60 countries, serving nearly 2,000 manufacturers globally and earning widespread acclaim.
Service And Support: Professional engineering team offering 24/7 online technical service and response. We will ensure that all orders it's the most competitive, accurate solution to your production requirements.
Quality Assurance: All machines are ISO and CE certified. 2-year warranty and lifetime service. Longer warranty period than the same industry.
Click Contact Us submit your information or send an email to sales@xirotech.cn
Bookmark our page. Learn more about the details of electric servo press. Quality Machinery, Limited-Time Discount, Act Now, Don't Miss Out!
Which press is best?XIRO Electric-servo | Electric-servo | Hydraulic | Mechanical | |
| High Tonnage Capacity | ✔ | ✔ | ||
| High Cycles Per Minute | ✔ | ✔ | ✔ | ✔ |
| High Accuracy | ✔ | ✔ | ✔ | ✔ |
| Programmable/ Adjustabe Stroke | ✔ | ✔ | ✔ | |
| Full Tonnage Throughout Stroke | ✔ | ✔ | ✔ | |
| Customizable | ✔ | ✔ | ✔ | |
| Low Acquisition Cost | ✔ | ✔ | ||
| Energy Efficient | ✔ | ✔ | ||
| Low Maintenance | ✔ | ✔ | ||
| Small Carbon Footprint | ✔ | ✔ | ||
| Quiet | ✔ | ✔ |
SpecificationThis table only lists partial parameter configurations for reference. For more parameter configurations, please feel free to inquire.
Item | Specification | |
XRES-1-5T | XRES-5-20T | |
Pressing mode | 1/pressure mode—2/position mode—3/position force mode | 1/pressure mode—2/position mode—3/position force mode |
Equipment weight | 1100KG±50KG | 1600KG±50KG |
Maximum stroke | ≥150mm | ≥150mm |
Data storage | USB (real time) | USB (real time) |
Data transmission | Ethernet (optional) | Ethernet (optional) |
Pressure resolution | 1N | 1N |
Displacement resolution | 0.001mm | 0.001mm |
Pressure judgment | ±zone location | ±zone location |
Location judgment | ±zone location | ±zone location |
Press-fitting program formula | save and call | save and call |
Displacement accuracy | ≤0.01mm | ≤0.01mm |
Displacement repetition accuracy | ±0.01mm | ±0.01mm |
Pressure accuracy | 1%FS | 1%FS |
Program capacity | more than 100 sets | more than 100 sets |
Flatness of upper indenter | range 0.02mm≤80mm | range 0.02mm≤80mm |
Relative parallelism of upper and lower worktables | range 0.02mm≤80mm | range 0.02mm≤80mm |
Verticality | range 0.05mm≤150mm | range 0.05mm≤150mm |
The fastest speed of spindle | upper/lower 100MM/S (adjustable) | upper/lower 100MM/S (adjustable) |
press-fitting speed | 0.1-50mm/s (adjustable) | 0.1-50mm/s (adjustable) |
Total power of equipment | 1-3KW | 3-7.5KW |
Equipment appearance color | computer ash (powder baking paint） | computer ash (powder baking paint） |
