The Electric Servo Press for Precision Assembly
Press-fit, riveting and assembly with ±0.01mm precision. Every cycle features a real-time force-displacement curve and is automatically sorted OK/NG.
CE & ISO 9001 · 10kg – 300T · Free sample trial
Servo orbital riveting machine

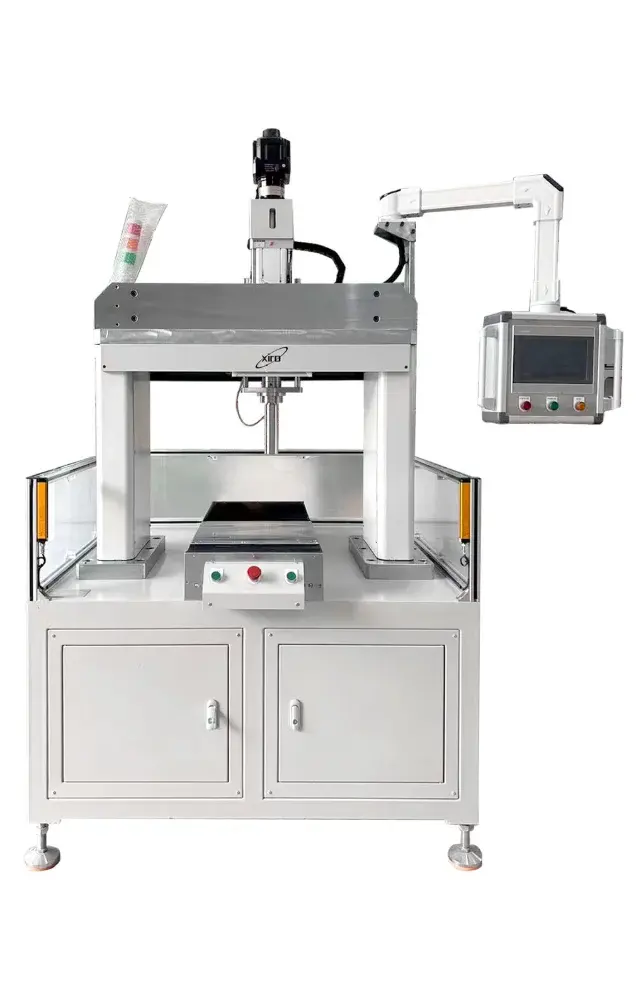

X&Y Axis electric servo press

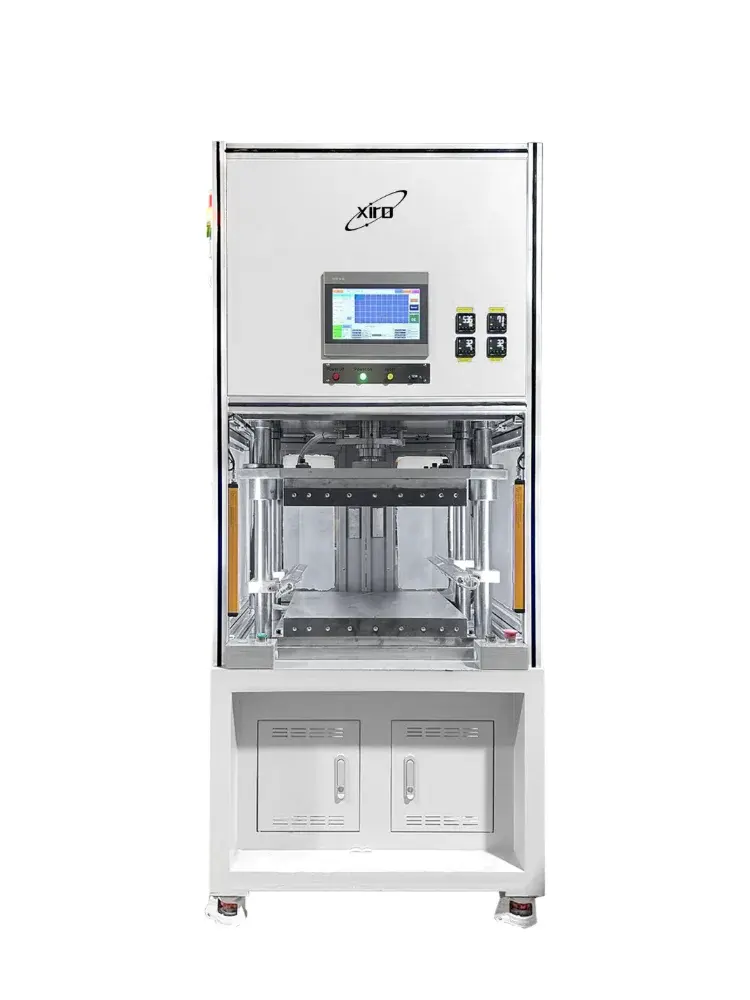

Servo heating press

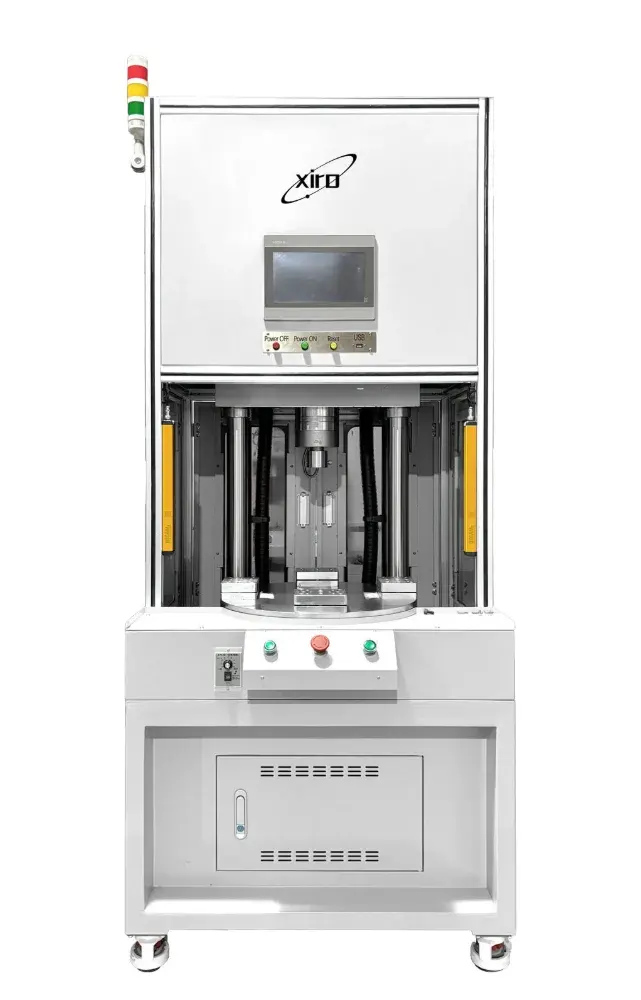

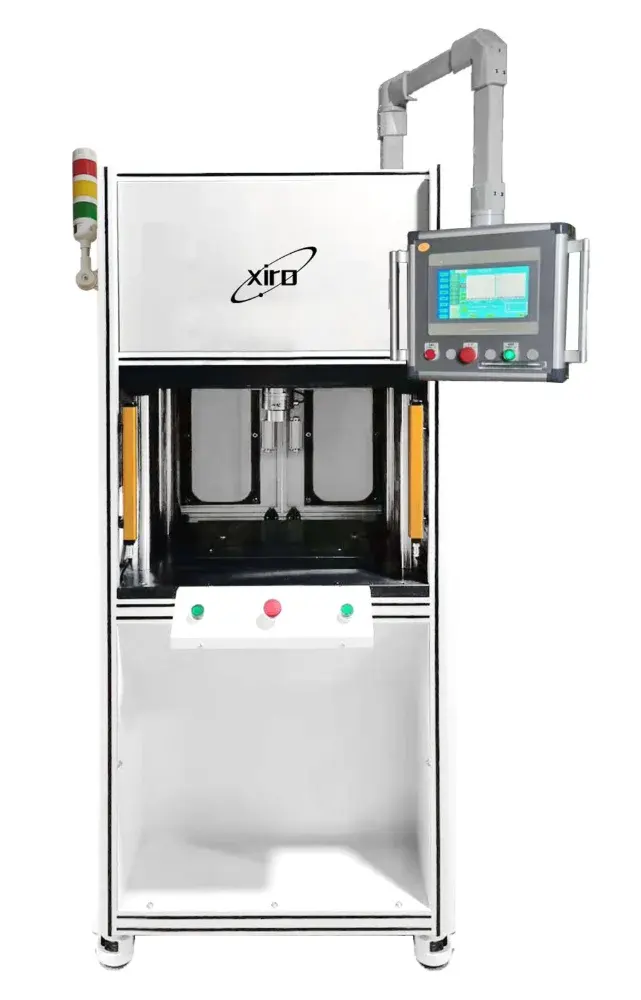

Four column rotary table servo press

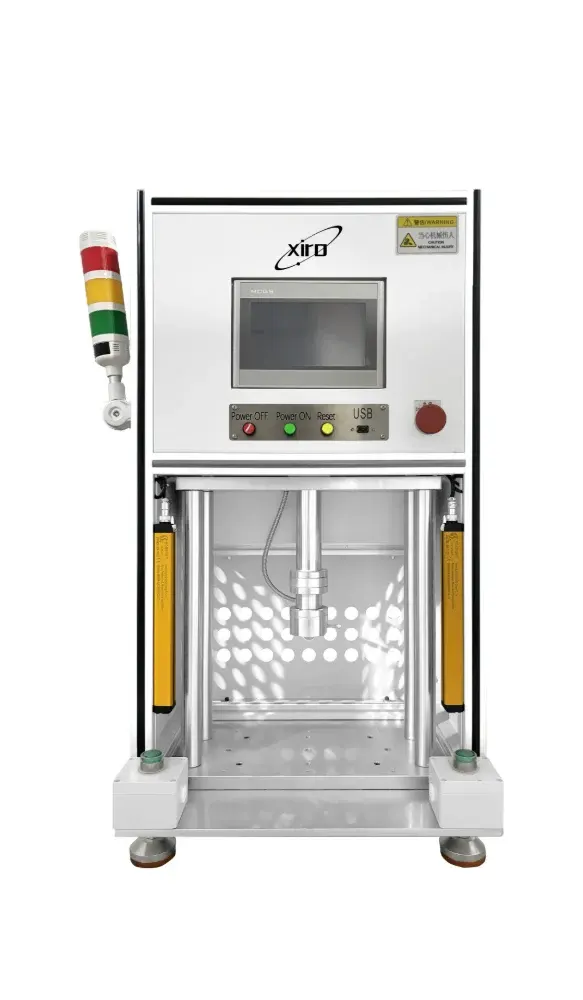

Four column benchtop servo press
Four column electric servo press-1
Four column electric servo press-2
Four column electric servo press-3
Desktop electric servo press

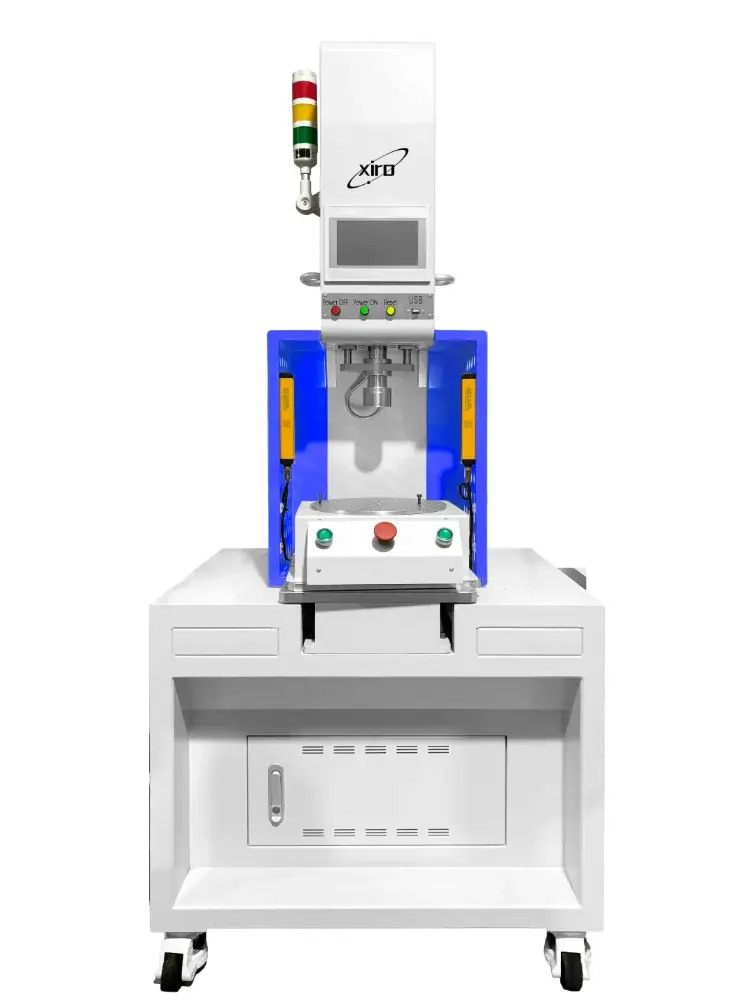

C frame rotary table servo press
C frame benchtop servo press
C frame electric servo press-1
C frame electric servo press-2Choose the Frame Type That Fits
Three frame architectures cover every force range — from 10kg to 300T. Match the frame to your part geometry and access requirements.

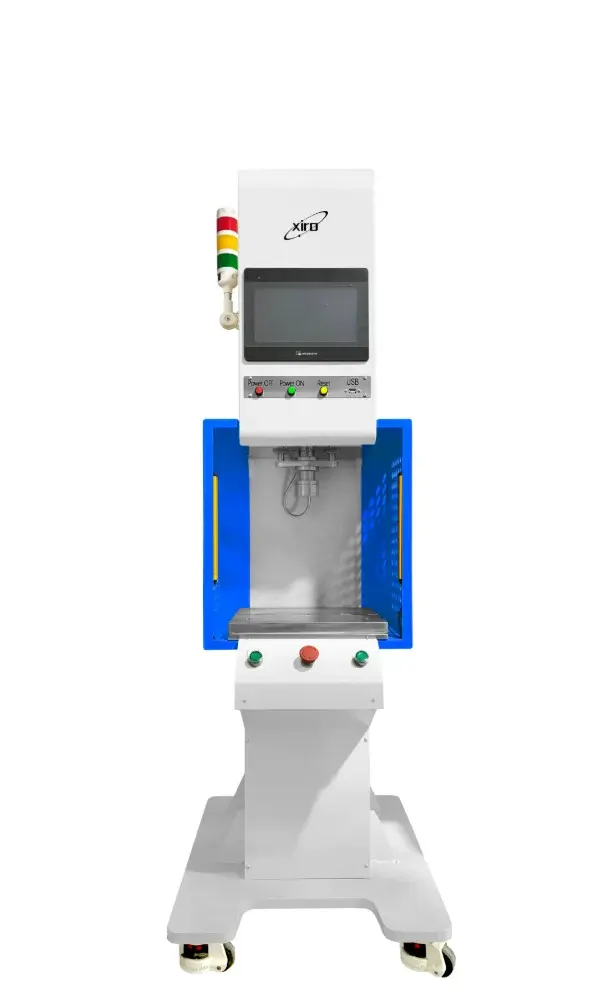

C-Frame Servo Press
Three-side open access for fast loading and inline automation. Compact footprint for benchtop and small-part assembly.
10kg – 20T
Four-Column Servo Press
The four-column guided structure ensures uniform force distribution across large platens, making it ideal for heavy-duty press-fitting and forming applications.
500kg – 300T

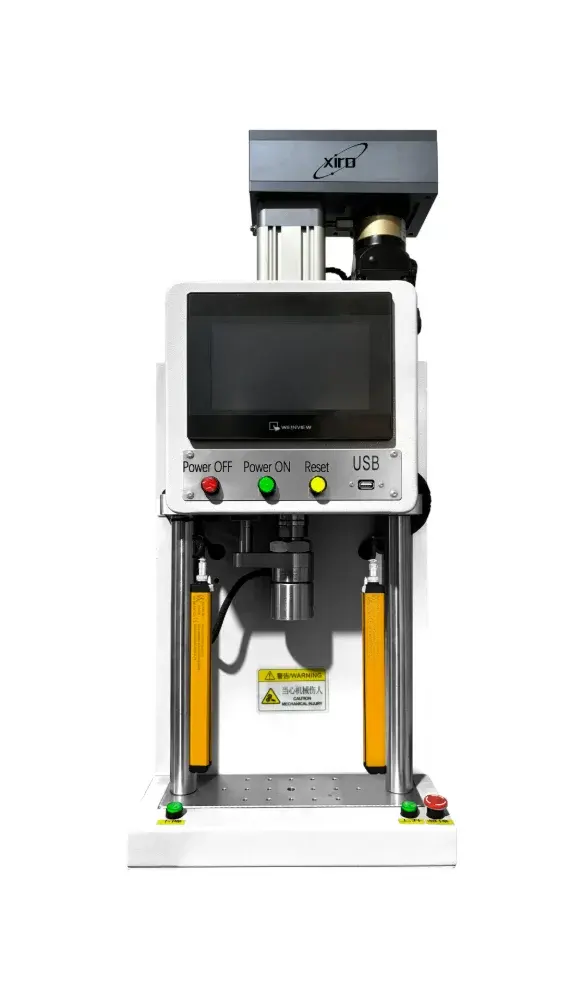

Desktop Servo Press
Compact desktop units for small components and compact press-fitting applications — space-saving.
10kg – 20TWhich Application Do You Need to Solve?
Every press is configured for your specific process — force, stroke, speed and stop conditions are matched to the application below.
Connector & Terminal Press-Fit
Force-distance tracking prevents pin damage during micro-connector assembly.

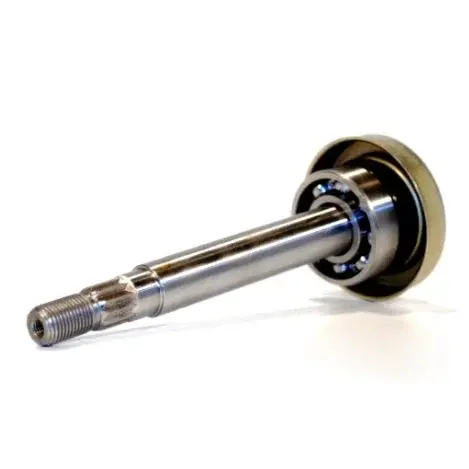

Motor Bearing & Shaft Insertion
Real-time monitoring for precise depth and load stop, no over-pressing or deformation.
Riveting & Staking
Precision servo riveting with φ12–φ20 spindle for consistent, repeatable joints.
Powder Compacting
Uniform force distribution for consistent powder-metal and ceramic density.
General Press-Fit & Assembly
Parts assembly, bushing and pin insertion with closed-loop position-force control.
Terminal Crimping
Servo-driven crimping with force verification on every cycle for wire harness.
Servo Stamping
Programmable stroke and speed profiles for light stamping and forming.
PCB & Electronics Assembly
Micro-force precision for PCB press-fit and electronic component insertion.
Why Engineers Choose XIRO
Three questions every buyer asks before ordering a servo press — answered with proof, not promises.
Will it press my part?
Send us your part and we run a free press-fit trial — you get a documented force-displacement curve and video before you buy.
What happens after I order?
A transparent 6-step process from quote to commissioning — no black box.
- Inquiry & quote — factory-direct price in 12 hours
- Design & confirm — drawings, customization, brands
- Production — in-house machining, documented
- Testing — every machine calibrated & accuracy-tested
- Shipment — export packing + flexible FOB, CIF or DDP options
- Ready to Use — complete machine delivery, power adapter included. Plug in and start working.
Can I trust the build quality?
Premium components. CE & ISO certified. Comparable quality at a fraction of the price of European, US and Japanese brands.
Built in our own factory
Every riveting machine is machined, assembled and accuracy-tested in-house. Direct from the production line — no middlemen, full documentation and traceability on every unit.
Ready to start?
Send your part for a free trial, or request a quote — reply within 12 hours.
Precision You Can Specify
Every machine is rigorously tested and inspected before shipment.
| Displacement repetition accuracy | ≤0.01mm |
| Displacement positioning accuracy | ±0.01mm |
| Displacement resolution | 0.001mm |
| Pressure accuracy | 0.5% FS |
| Pressure resolution | 1N |
| Pressing modes | Pressure / Position / Position-Force |
| Press-fitting speed | 0.1 – 20 mm/s |
| No load fastest speed | 100 mm/s |
| Data storage / transmission | USB (real-time) + Ethernet |
| Formula capacity | 100+ sets |
| Force range | 10kg – 300T |
| Total power | 0.75 – 22 KW |
Build the Press Your Line Needs
Standard machines are just the start — add the options below and the press grows into exactly what your process demands.
Need Something More?
Don't see exactly what you need? Tell us what you're trying to achieve. We'll work with you to create the right combination of functions, tooling and custom features for your application.See the Press in Action
Product & factory video · loads only when you click play
Match Your Application to the Right Model
If your process is spin riveting, hot pressing or powder compacting, XIRO builds a dedicated servo machine for it — choose the model that fits your application.
Servo Spin Riveting
Orbital & radial forming with servo-controlled rotation and stroke — fully electric, no air or oil. Built-in force monitoring and OK/NG evaluation for 100% traceable rivet joints.
Servo Powder Press
Closed-loop force-position control presses metal & ceramic powder to uniform green density. Multi-stage curves (pre-press → degas → main → hold) prevent cracking and lamination.
Questions Buyers Ask Most
Straight answers to the questions every purchasing team asks before buying a servo press.
How do I choose the right tonnage / force?
Can the servo press be customized?
What is the MOQ and delivery time?
Which components do you use?
What about shipping and installation?
What warranty and support do you offer?
Get a Custom Quote & Servo Press Selection Guide
Tell us your application and force requirement. We will reply with a spec sheet and factory-direct price within 12 hours.
