Mechanical vs Hydraulic Powder Press: How to Choose? (2026 Guide)

Quick Conclusion

If you need a quick selection rule:

In general:

• Mechanical powder presses are ideal for high-volume production of small to medium precision powder metallurgy parts, especially where dimensional consistency and productivity are critical.

• Hydraulic powder presses are better suited for large components, complex geometries, high H/D ratios, or processes requiring pressure dwell.

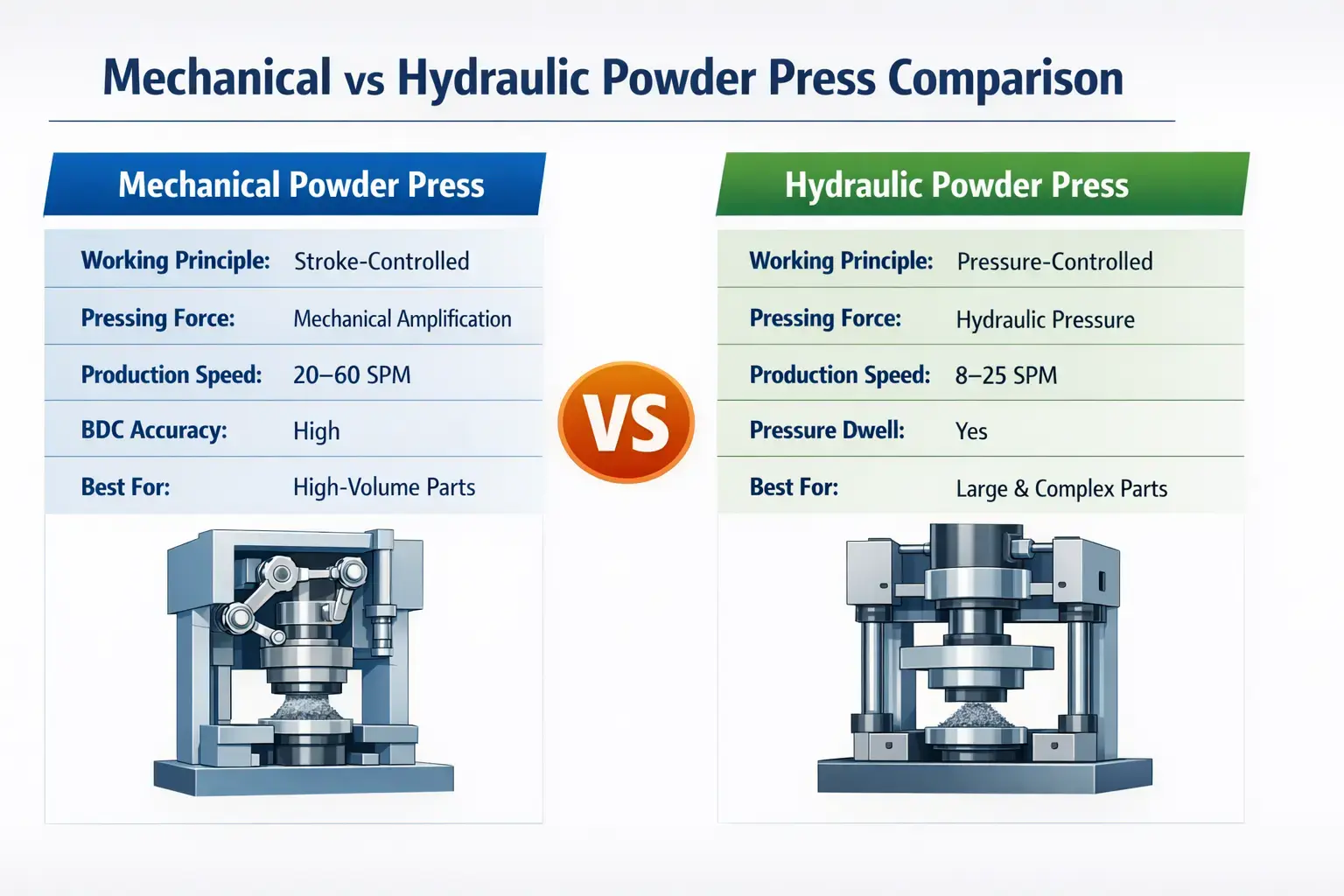

This guide compares the working principles, precision, cost, and real industrial applications of both technologies to help engineers select the right powder compaction equipment.

1 Working Principle: Stroke Control vs Pressure Control

Mechanical Powder Press(Stroke-Controlled System)

A mechanical powder compaction machine converts motor rotation into reciprocating motion through mechanisms such as:

• crankshaft

• connecting rods

• toggle systems

• cam mechanisms

The bottom dead center (BDC) position of the slide is mechanically fixed.

As the slide approaches the BDC, the mechanical transmission ratio of the crank mechanism increases rapidly, amplifying the pressing force and compacting the powder.

Key Characteristics

• Pressing force generated through mechanical force amplification

• Part height determined by BDC position

• Flywheel energy storage enables high-speed production

• Typical production speed: 20–60 strokes per minute (SPM) depending on machine tonnage

Because of this stroke-controlled mechanism, mechanical presses provide excellent repeatability in compact height, making them ideal for mass production of precision powder metallurgy parts.

Hydraulic Powder Press(Pressure-Controlled System)

Hydraulic powder presses use hydraulic cylinders driven by pressurized oil to generate pressing force.

Unlike mechanical presses, hydraulic systems allow flexible control of both pressure and speed throughout the stroke. The press can also hold pressure at the bottom position, which is useful for certain materials.

Key Characteristics

• Pressing force generated by hydraulic pressure

• Full stroke pressure control

• Ability to perform pressure dwell (holding time)

• Flexible for complex forming processes

Hydraulic presses typically operate at lower production speeds, but they provide greater process flexibility.

2 Cost Comparison: Initial Investment vs Operating Cost

Initial Investment

Mechanical Powder Press

Higher manufacturing precision requirements

• Complex transmission components (crankshaft, bearings, linkages)

• Typically 20–50% more expensive than hydraulic presses of the same tonnage.

• Hydraulic Powder Press

• Simpler mechanical structure

• Standardized hydraulic components

Generally lower initial purchase cost, especially for large tonnage machines.

Operating Cost

Energy Consumption

Mechanical presses use a flywheel energy storage system, allowing energy to accumulate and release during pressing cycles.

As a result, energy consumption during high-volume production is significantly lower than hydraulic presses.

Hydraulic presses require continuous operation of hydraulic pumps, which leads to higher electricity consumption.

Maintenance Cost

Mechanical press maintenance mainly involves:

• bearings

• guideways

• lubrication systems

Maintenance intervals are relatively long.

Hydraulic presses require regular inspection and replacement of:

• seals

• filters

• hydraulic oil

Hydraulic oil leakage can also increase maintenance frequency.

Overall Cost Comparison

For high-volume production (millions of parts annually), the higher efficiency and lower energy consumption of mechanical presses significantly reduce unit production cost.

For low-volume or multi-variety production, hydraulic presses may be more economical due to their flexibility and lower initial investment.

3 Precision Comparison: BDC Repeatability vs Pressure Control

Mechanical Press Advantage: BDC Repeatability

The key precision parameter of a mechanical powder press is BDC repeatability.

High-precision powder presses can achieve:

BDC repeatability ≤ ±0.02 mm

This ensures extremely stable green compact height, which is essential for large-scale production.

Typical applications include:

• powder metallurgy gears

• motor structural parts

• automotive PM components

Hydraulic Press Advantage: Pressure Control

Hydraulic presses excel in pressing force control.

Using servo valves or proportional valves, pressure repeatability can reach:

±1% or better

This allows:

• multi-stage compaction

• gradual pressure increase

• improved density distribution in complex parts

Such capabilities help reduce density gradients and internal cracking.

Precision Summary

4 Application Comparison: When to Choose Each Type

Mechanical Powder Press Is Ideal For

• Small to medium parts

• Projection area typically<100 cm²

• Production rate >10 parts/min

• High dimensional consistency requirements

• Conventional powder metallurgy materials such as:

         - iron powder

         - copper powder

Recommended H/D ratio ≤1.5, though ratios up to 2.5 can be achieved with double-action pressing or floating die systems.

Hydraulic Powder Press Is Ideal For

• Large parts requiring >5000 kN pressing force

• Complex shapes with multiple steps

• Processes requiring pressure dwell

• Materials prone to cracking such as:

         - ceramics

         - carbide powders

Hydraulic presses are also more suitable for:

• high H/D ratio parts (>2.5)

• small batch, multi-product production

5 How to Select the Right Powder Press

A practical selection process usually includes the following steps.

Step 1: Analyze the Part

Key factors include:

• projection area

• material type

• production volume

• dimensional tolerance

• H/D ratio

Pressing force can be roughly estimated using:

Pressing Force = Projection Area × Compaction Pressure

Typical compaction pressure for iron powder metallurgy parts: 400–800 MPa

Step 2: Evaluate Production Volume

High-volume production → mechanical press preferred

Multi-variety or low-volume production → hydraulic press preferred

Step 3: Check Equipment Capability

Verify whether the selected press meets:

• tonnage requirement

• stroke length

• die configuration

• automation compatibility

If possible, trial compaction tests are recommended.
